QUANTUM™ Lobby Panels

QUANTUM™ Lobby Panels

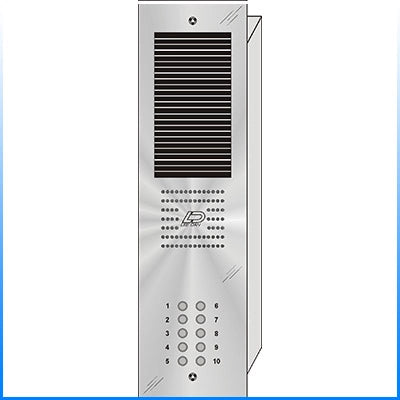

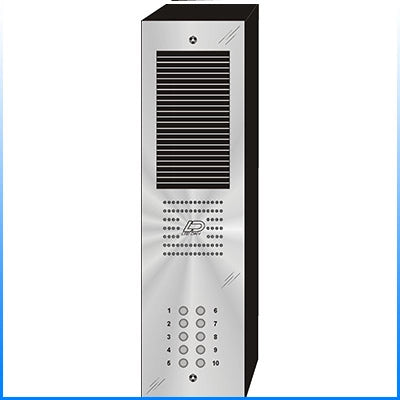

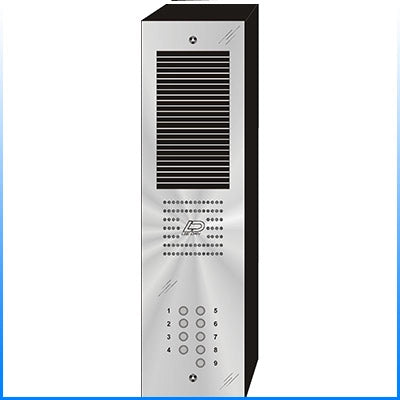

QUANTUM™ Stainless Steel Apartment Entry Panel

Round Metal Button Style Vandal-Proof Intercom Lobby Panels



  • High-Grade 16 gauge (Low Carbon) stainless steel
  • Integral Polycarbonate Protected Alphabetical Directory
  • Exclusive 3-Layer metal speaker baffle
  • Mylar Cone Weather-Resistant speaker
  • Heavy (6 amp rated) solid metal buttons with positive screw terminals
  • Permanent, custom engraving directly on the panel surface
  • Custom sizing available
  • 'Tampruf' Tamper-Proof access screws
  • Flush or Surface mount
  • Any number of buttons (2 or more)
Quantum Loud Speaker (L/S) Panel Specifications
# of Buttons

Outside Dimensions:

Flush & Surface

 Flush Panels BackBox Flush Wall Opening Dimensions Maximum Names Strip Capacity
2-6 11 1/2"H x 5"W BB-101 10 1/8" H x 4 1/8"W 10 12
7-16 18 3/4"H x 5"W BB-201 16 1/8" H x 4 1/8"W 24 26
17-36 18 3/4"H x 10"W BB-202 16 1/8" H x 8 1/8"W 52 56
37-46 18 3/4"H x 14"W BB-203 16 1/8" H x 12 1/8"W 52 56
47-82 18 3/4"H x 18"W BB-204 16 1/8" H x 16 1/8"W 104 112
83-96 18 3/4"H x 22"W BB-205 16 1/8" H x 20 1/8"W 104 112
97-128 18 3/4"H x 26"W BB-206 16 1/8" H x 24 1/8"W 156 168
129-144 18 3/4"H x 30"W BB-207 16 1/8" H x 28 1/8"W 156 168
For Quantum™Panels over 144 buttons, please call us directly

Optional speaker equipment is available, including Bell/Buzzer, Speaker/Transmitter, Speaker/Microphone, Amplified Handset, and Speaker/Transmitter Handset. Call LEE DAN for wall dimensions of any QUANTUM™ panels other than 'QS' LEE DAN for other styles including economy, vandal-resistant, oversized directory and stainless steel.
View full details

QUANTUM™ Style Button Options:
