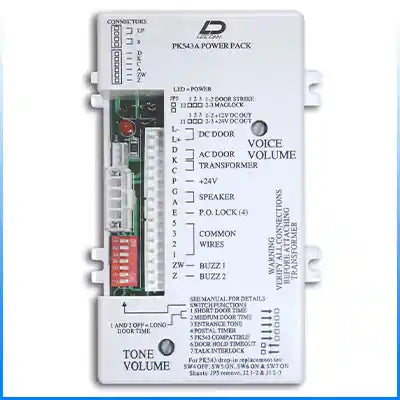

The PK-543A Power Pack Intercom Amplifier is a self contained unit not requiring an external amplifier. The PK-543A is designed for use with most 3-wire, 4-wire and 5-wire apartment stations made by LEE DAN, TekTone, and other popular brands. PK-543A provides amplification control and power circuits needed to operate a complete apartment intercom system. Voice volume control and tone volume control are easily adjustable through the screwdriver slot on the front panel. Additional functions include multi-entrance operation with optional PK-502B, AC or DC door operation selectable by terminal connection with selectable delayed action door release set at the dip switch, post office door lock release and a tone signal to call remote stations. A steady or warble tone can be used to identify calling from the main entrance panel and a call button located at the suite entrance. The PK-543A intercom amplifier is an interchangeable replacement for the TekTone PK543A intercom amplifier.
Direct Replacement: For TekTone® PK543A
Also Replaces: PK543, PK-543, PK543L, PK-543L, PK543AL, PK-543AL, PK104B, PK-104B, PK-104BL, PK103B, PK-103B, PK-103BL, PK-103A, PK103A, PK-103AL, PK101A, PK-101A, PK-101AL, PK101, IA543, FMC-10, ACS-30, 3083, 3087, 3088, 5010, MA210, MA211, MA330, MA401C, AD700
Specifications
- Size 5 1/2" H x 3 1/8" W x 2" D
- Amplification Integrated circuit amplifier including amplifier
- Frequency response adjusted for best voice articulation
- Construction Rugged ABS Plastic Casing
- Power Req16 VAC, 10VA
- Door Release AC or DC Operation w/ selectable timing
- Call Tone Integrated circuit oscillator
- P.O. Release P.O. door lock release
- Mounting Surface
- Connector CT-543A Plug-in connector included
