Lee Dan Communications, LLC

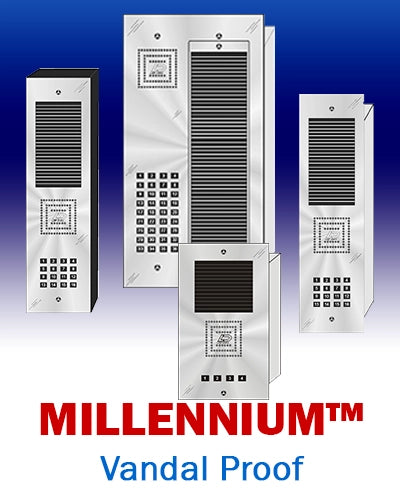

MILLENNIUM™ Lobby Panels

Name: MILLENNIUM™ Lobby Panels
Brand: Lee Dan Communications, LLC
Availability: InStock

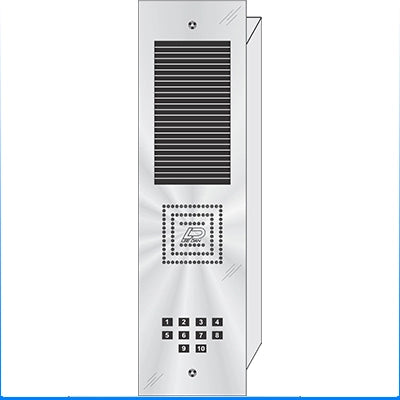

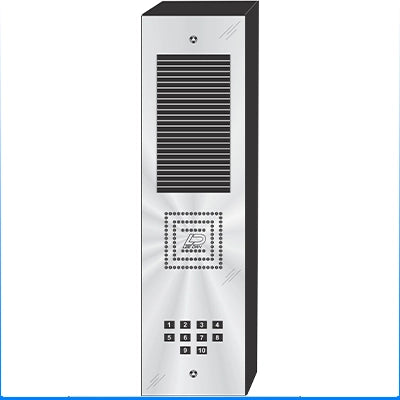

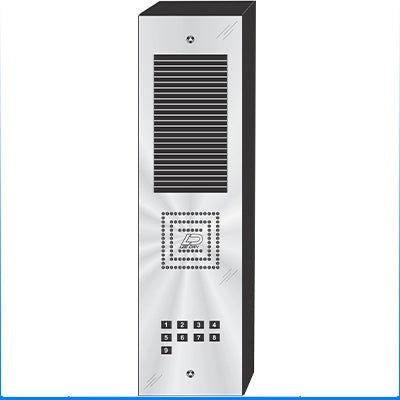

MILLENNIUM™ Stainless Steel Apartment Entry Panel

Black Metal Button Style Vandal-Proof Intercom Lobby Panels

Standard MILLENNIUM™ Features

High-Grade 16 gauge (Low Carbon) stainless steel
Integral Lexan® sheet alphabetical directory
Exclusive 3-Layer metal speaker baffle
Mylar Cone weatherproof speaker
Solid permanently, custom engraved black metal plungers
Self-Wiping push buttons with screw yerminals- mounted on a reinforced backplate
Custom sizing available
'Tampruf' Tamper-proof access screws
Flush or Surface mount
Any number of buttons (2 or more)

Millennium Loud Speaker (L/S) Panel Specifications

# of Buttons	Outside Dimensions: Flush & Surface	Flush Panels BackBox	Flush Wall Opening Dimensions	Maximum Names	Strip Capacity
4-8	11 1/2"H x 5"W	BB-101	10 1/8" H x 4 1/8"W	10	12
12-20	18 3/4"H x 5"W	BB-201	16 1/8" H x 4 1/8"W	24	26
24-48	18 3/4"H x 10"W	BB-202	16 1/8" H x 8 1/8"W	52	58
52-56	18 3/4"H x 14"W	BB-203	16 1/8" H x 12 1/8"W	104	112
60-100	18 3/4"H x 18"W	BB-204	16 1/8" H x 16 1/8"W	104	112
104-132	18 3/4"H x 22"W	BB-205	16 1/8" H x 20 1/8"W	156	168
136-148	18 3/4"H x 26"W	BB-206	16 1/8" H x 24 1/8"W	156	168
152-200	18 3/4"H x 30"W	BB-207	16 1/8" H x 28 1/8"W	208	224
For MILLENNIUM™ Panels over 200 buttons, please call us directly
Optional speaker equipment is available, including Bell/Buzzer, Speaker/Transmitter, Speaker/Microphone, Amplified Handset, and Speaker/Transmitter Handset. Call LEE DAN for wall dimensions of any MILLENNIUM™ panels other than 'MS' LEE DAN for other styles including economy, vandal-resistant, oversized directory and stainless steel.
