Lee Dan Communications, LLC

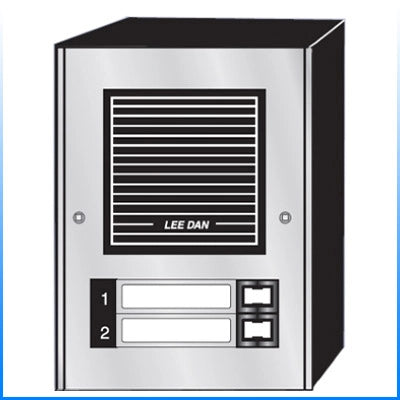

Style 'E'™ Economy Style
Apartment Lobby Panel
For the ES-002 Flush Mount go here.
Anodized Aluminum/Plastic Intercom Entry Panel
Standard Style “E” Features
- Extruded Anodized Aluminum
- ABS Plastic Speaker Grille
- Mylar Cone, 45 Ohm Weather-Resistant Speaker
- Permanently, Custom Engraved Numberstrip
- Self-Wiping Push Buttons (Positive Screw Terminals)
- Metal Nameholders
- Room for Write-on Name Cards
- 'Scrulox' Tamper-Resistant Access Screws
- Weatherstripping on back of panel
- Standard Engraved: 1-2 using EN-002 number strip
- Custom Engraved: Upon request, such as 1A, 2A
| Size |
6 7/8" H x 5" W x 2 1/8" D |
Material
Finish |
Extruded anodized aluminum, with plastic speaker grille
Satin Aluminum Finish |
| Speaker |
3 1/2", 1.0 Watt, 45 Ohm Mylar Cone, Weather-Resistant
Heavy duty magnet with natural voice reproduction
Also used for tone signal from lobby panel |
| Grille |
Black ABS plastic model PL-018B with corner mounting clips |
| Buttons |
ST-008 1-Screw Plastic Production type (included) |
| ST-008/2 2-Screw Replacement type |
| Controls |
Individually replaceable plastic buttons with self-wiping, plated contacts |
| Holes |
2 mounting holes to fit Surace mount OH-700 box (included) |
| Screws |
Includes 2 Scrulox Tamper-Resistant mounting screws
Requires SC-1 Scrulox tamper screw driver to install |
