Lee Dan Communications, LLC

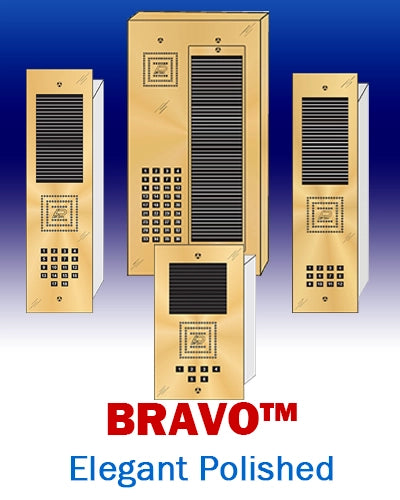

BRAVO™ Lobby Panels

BRAVO™ Lobby Panels

BRAVO™ Solid Polished Brass Apartment Entry Panel

Elegant Intercom Lobby Panels

Standard BRAVO™ Features

  • Optional Building Address Engraving Foils Theft (add suffix 'E' to model no.)
  • Heavy .062 Solid Polished Brass
  • Integral Polycarbonate Protected Alphabetical Directory
  • Exclusive 3-Layer Metal Speaker Baffle
  • Mylar Cone Weather-Resistant Speaker
  • Solid Permanently, Custom Engraved Black Metal Plungers
  • Self, Wiping Push Buttons with Screw Terminals
  • Push Buttons mounted on a Reinforced Backplate
  • Custom Sizing Available
  • 'Tampruf' Tamper-Proof Access Screws
  • Available with any number of buttons
  • Three (3) style choices (C, M, Q)
  • Flush or Surface mount
  • Optional Lacquer, or allow panel to age for antique finish
“Classic” Bravo (Black Buttons) Loud Speaker (L/S) Panel Specifications
# of Buttons

Outside Dimensions:

Flush & Surface

 Flush Panels BackBox Flush Wall Opening Dimensions Maximum Names Strip Capacity
1-8 11 1/2"H x 5"W BB-101 10 1/8" H x 4 1/8"W 10 12
9-20 18 3/4"H x 5"W BB-201 16 1/8" H x 4 1/8"W 24 26
21-48 18 3/4"H x 10"W BB-202 16 1/8" H x 8 1/8"W 52 58
49-56 18 3/4"H x 14"W BB-203 16 1/8" H x 12 1/8"W 104 112
57-100 18 3/4"H x 18"W BB-204 16 1/8" H x 16 1/8"W 104 112
101-132 18 3/4"H x 22"W BB-205 16 1/8" H x 20 1/8"W 156 168
133-148 18 3/4"H x 26"W BB-206 16 1/8" H x 24 1/8"W 156 168
149-200 18 3/4"H x 30"W BB-207 16 1/8" H x 28 1/8"W 208 224
For BRAVO™ Panels over 200 buttons, please call us directly

Optional speaker equipment is available, including Bell/Buzzer, Speaker/Transmitter, Speaker/Microphone, Amplified Handset, and Speaker/Transmitter Handset. Call LEE DAN for wall dimensions of any BRAVO™ panels other than 'BS' LEE DAN for other styles including economy, vandal-resistant, oversized directory and stainless steel.
View full details

Bravo Style Button Options:
